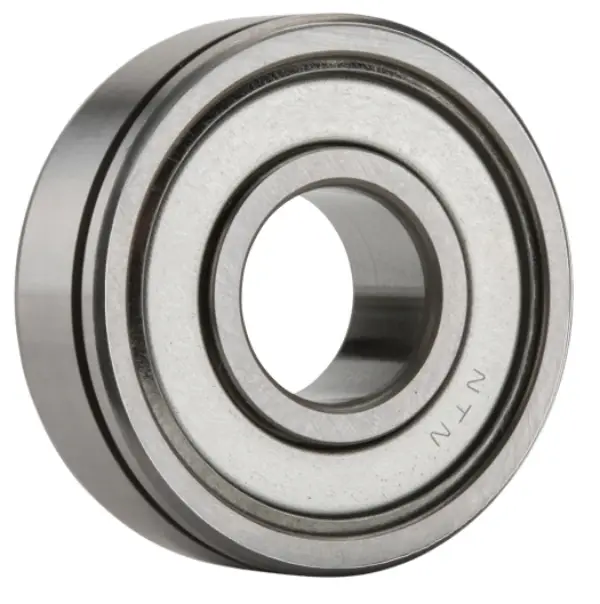

NTN 6207ZN
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
11000 RPM
Limiting Speed - Grease
9800 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
13.8
Radial Internal Clearance
CN
Static Load Rating
15300 N
Dynamic Load Rating
28400 N
Enclosure
Single Shielded
Weight
0.280 kg
Operating Temperature Range
-40 to 120 ºC

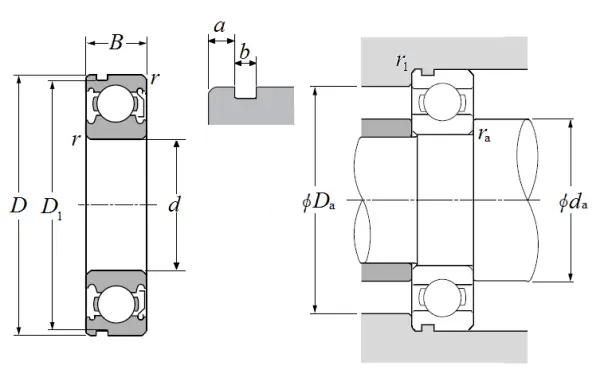

Dimensional Specifications
d
35.000 mm
D
72.000 mm
B
17.000 mm
D1
68.810 mm
a
3.280 mm
b
1.900 mm
r
1.000 mm
r1
0.500 mm
da min
41.500 mm
da max
45.000 mm
Da max
65.500 mm
ras max
1.000 mm
