NTN 6208LB
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
10000 RPM
Limiting Speed - Grease
8700 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
73.5
Radial Internal Clearance
CN
Static Load Rating
17800 N
Dynamic Load Rating
32500 N
Enclosure
Single Sealed
Weight
0.358 kg
Operating Temperature Range
-40 to 120 ºC

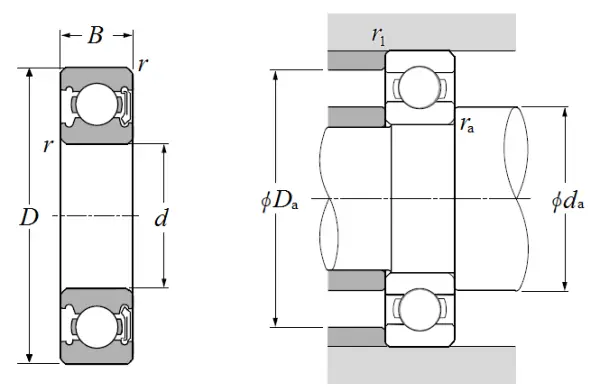

Dimensional Specifications
d
40.000 mm
D
80.000 mm
B
18.000 mm
r
1.100 mm
r1
0.300 mm
da min
46.500 mm
da max
51.000 mm
Da max
73.500 mm
ras max
1.000 mm
