NTN 6209LLBNR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
7800 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
14.1
Radial Internal Clearance
CN
Static Load Rating
20400 N
Dynamic Load Rating
36000 N
Enclosure
Double Sealed
Weight
0.411 kg
Operating Temperature Range
-40 to 120 ºC

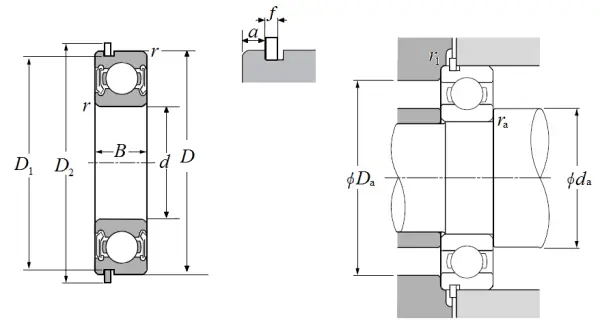

Dimensional Specifications
d
45.000 mm
D
85.000 mm
B
19.000 mm
D1
81.810 mm
D2
91.600 mm
a
3.280 mm
f
1.700 mm
r
1.100 mm
r1
0.500 mm
da min
51.500 mm
da max
55.500 mm
Da max
78.500 mm
ras max
1.000 mm
