NTN 6212ZZNR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
6000 RPM
Precision
ISO Class 0
Configuration
One
Factor
14.3
Radial Internal Clearance
CN
Static Load Rating
36000 N
Dynamic Load Rating
58000 N
Enclosure
Double Shielded
Weight
0.793 kg
Operating Temperature Range
-40 to 120 ºC

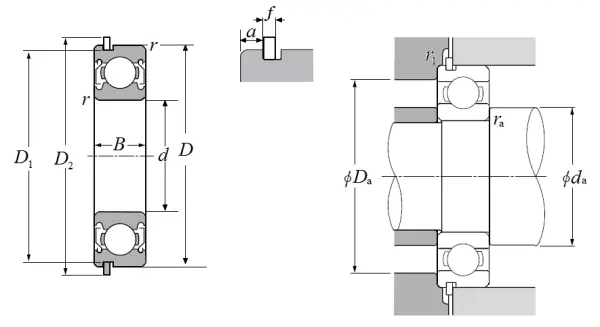

Dimensional Specifications
d
60.000 mm
D
110.000 mm
B
22.000 mm
D1
106.810 mm
D2
116.600 mm
a
3.280 mm
f
2.460 mm
r
1.500 mm
r1
0.500 mm
da min
68.000 mm
da max
75.000 mm
Da max
102.000 mm
ras max
1.500 mm
