NTN 6213LB
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
6500 RPM
Limiting Speed - Grease
5500 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
112
Radial Internal Clearance
CN
Static Load Rating
40000 N
Dynamic Load Rating
63500 N
Enclosure
Single Sealed
Weight
0.988 kg
Operating Temperature Range
-40 to 120 ºC

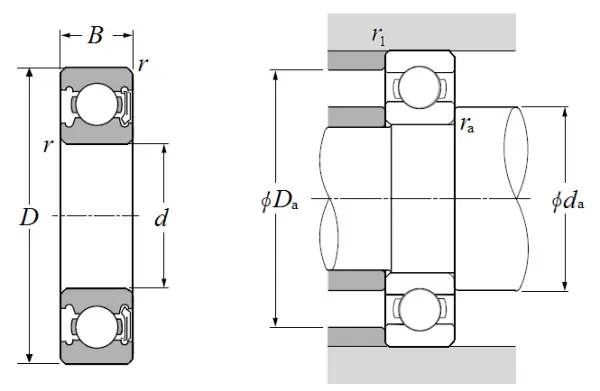

Dimensional Specifications
d
65.000 mm
D
120.000 mm
B
23.000 mm
r
1.500 mm
r1
0.500 mm
da min
73.000 mm
da max
80.500 mm
Da max
112.000 mm
ras max
1.500 mm
