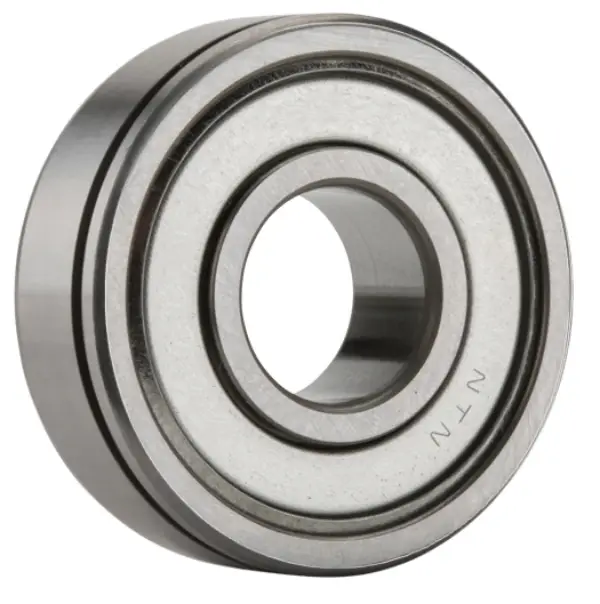

NTN 6213ZN
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
6500 RPM
Limiting Speed - Grease
5500 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
14.4
Radial Internal Clearance
CN
Static Load Rating
40000 N
Dynamic Load Rating
63500 N
Enclosure
Single Shielded
Weight
0.990 kg
Operating Temperature Range
-40 to 120 ºC

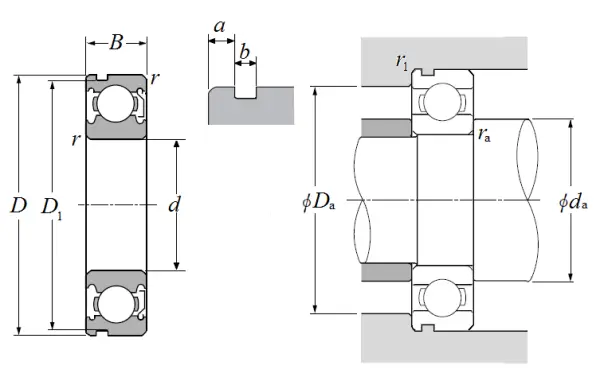

Dimensional Specifications
d
65.000 mm
D
120.000 mm
B
23.000 mm
D1
115.210 mm
a
4.060 mm
b
3.100 mm
r
1.500 mm
r1
0.500 mm
da min
73.000 mm
da max
80.500 mm
Da max
112.000 mm
ras max
1.500 mm
