NTN 6214LUN
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
3400 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Factor
14.5
Radial Internal Clearance
CN
Static Load Rating
44000 N
Dynamic Load Rating
69000 N
Enclosure
Single Sealed
Weight
1.070 kg
Operating Temperature Range
-40 to 120 ºC

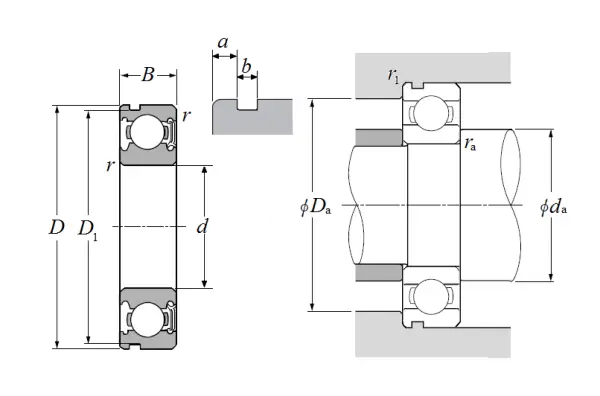

Dimensional Specifications
d
70.000 mm
D
125.000 mm
B
24.000 mm
D1
120.220 mm
a
4.060 mm
b
3.100 mm
r
1.500 mm
r1
0.500 mm
da min
78.000 mm
da max
85.000 mm
Da max
117.000 mm
ras max
1.500 mm
