NTN 6215LBNR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
5600 RPM
Limiting Speed - Grease
4800 RPM
Seal Type
Non Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
14.7
Radial Internal Clearance
CN
Static Load Rating
49500 N
Dynamic Load Rating
73500 N
Enclosure
Single Sealed
Operating Temperature Range
-40 to 120 ºC

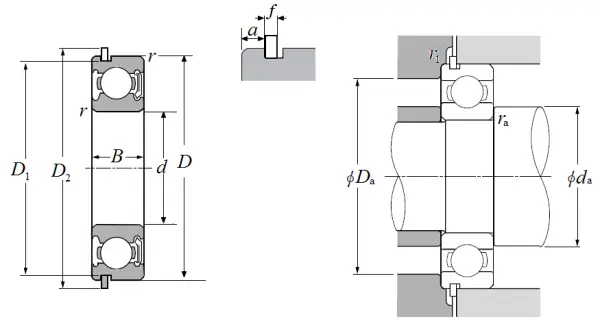

Dimensional Specifications
d
75.000 mm
D
130.000 mm
B
25.000 mm
D1
125.220 mm
D2
139.700 mm
a
4.060 mm
f
2.820 mm
r
1.500 mm
r1
0.500 mm
da min
83.000 mm
da max
90.500 mm
Da max
122.000 mm
ras max
1.500 mm
