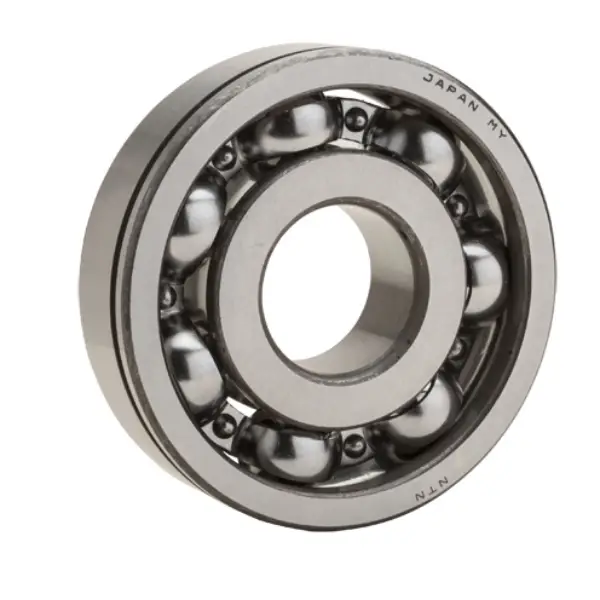

NTN 6220NC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
4200 RPM
Limiting Speed - Grease
3500 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
14.4
Radial Internal Clearance
C3
Static Load Rating
93000 N
Dynamic Load Rating
135000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
100.000 mm
D
180.000 mm
B
34.000 mm
D1
173.660 mm
a
5.690 mm
b
3.500 mm
r
2.100 mm
r1
0.500 mm
da min
111.000 mm
da max
122.000 mm
Da max
169.000 mm
ras max
2.000 mm
