NTN 6224ZNC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
3400 RPM
Limiting Speed - Grease
2900 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
14.4
Radial Internal Clearance
C3
Static Load Rating
131000 N
Dynamic Load Rating
172000 N
Enclosure
Single Shielded
Weight
5.150 kg
Operating Temperature Range
-40 to 120 ºC

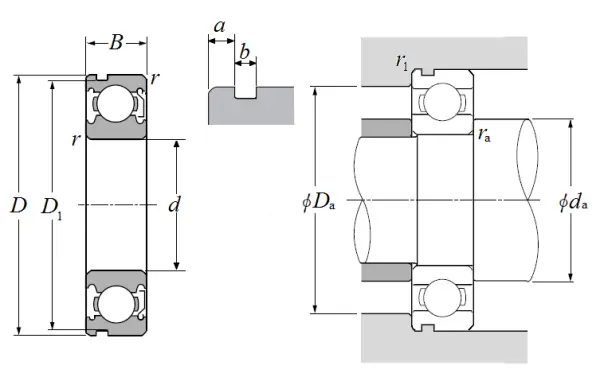

Dimensional Specifications
d
120.000 mm
D
215.000 mm
B
40.000 mm
a
6.500 mm
b
4.500 mm
r
2.100 mm
da min
131.000 mm
da max
143.000 mm
Da max
204.000 mm
ras max
2.000 mm
