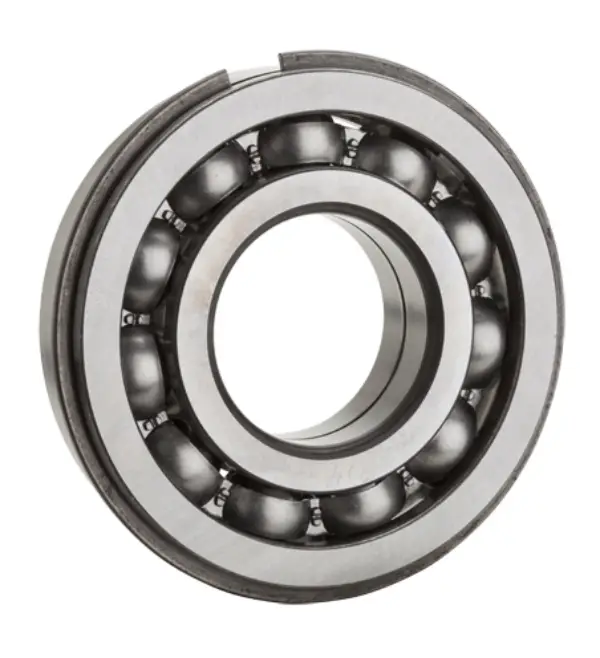

NTN 6226NR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
3100 RPM
Limiting Speed - Grease
2700 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Factor
14.5
Radial Internal Clearance
CN
Static Load Rating
146000 N
Dynamic Load Rating
185000 N
Enclosure
Open
Weight
5.820 kg
Operating Temperature Range
-40 to 120 ºC

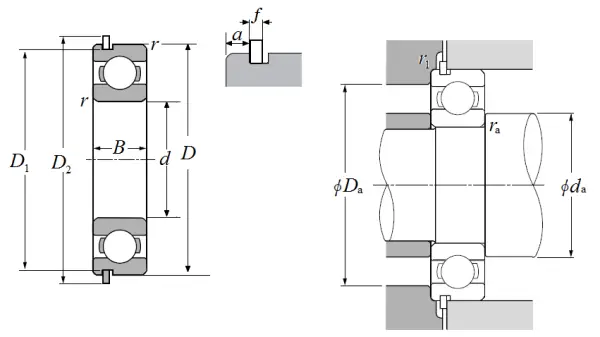

Dimensional Specifications
d
130.000 mm
D
230.000 mm
B
40.000 mm
D1
222.000 mm
D2
242.000 mm
a
6.500 mm
f
3.500 mm
r
3.000 mm
da min
143.000 mm
Da max
217.000 mm
ras max
2.500 mm
