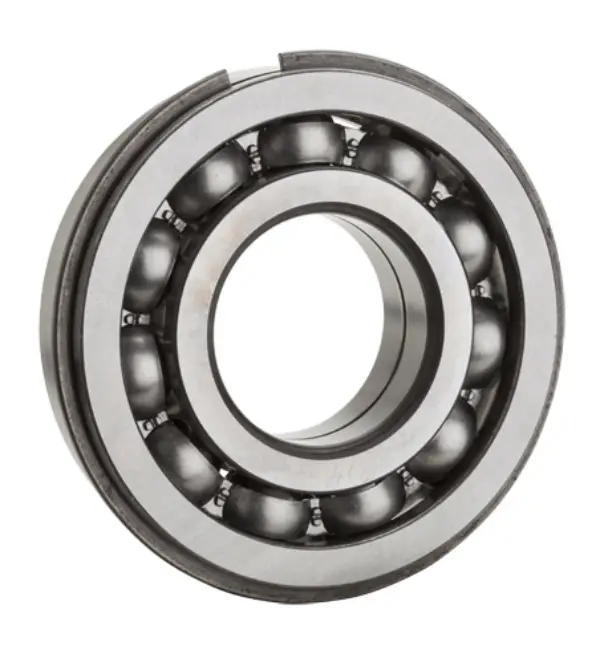

NTN 6228NRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
2900 RPM
Limiting Speed - Grease
2500 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Factor
14.8
Radial Internal Clearance
C3
Static Load Rating
150000 N
Dynamic Load Rating
184000 N
Enclosure
Open
Weight
7.570 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
140.000 mm
D
250.000 mm
B
42.000 mm
D1
242.000 mm
D2
262.000 mm
a
6.500 mm
f
3.500 mm
r
3.000 mm
da min
153.000 mm
Da max
237.000 mm
ras max
2.500 mm
