NTN 623ZZA
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
50000 RPM
Precision
ISO Class 0
Configuration
One
Factor
12.7
Radial Internal Clearance
CN
Static Load Rating
220 N
Dynamic Load Rating
710 N
Enclosure
Removable Double Shield
Weight
0.002 kg
Operating Temperature Range
-40 to 120 ºC

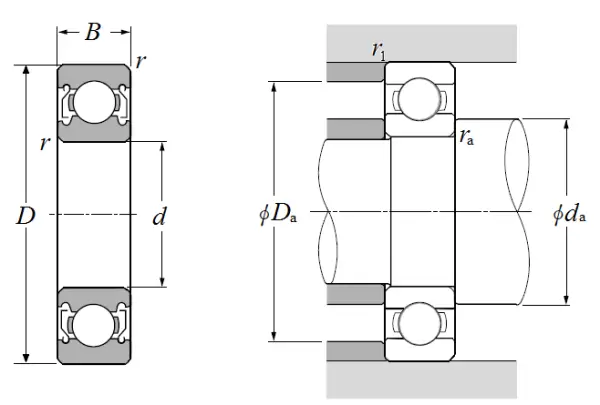

Dimensional Specifications
d
3.000 mm
D
10.000 mm
B
4.000 mm
r
0.150 mm
