NTN 624
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
49000 RPM
Limiting Speed - Grease
42000 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
12.4
Radial Internal Clearance
CN
Static Load Rating
490 N
Dynamic Load Rating
1450 N
Enclosure
Open
Weight
0.003 kg
Operating Temperature Range
-40 to 120 ºC

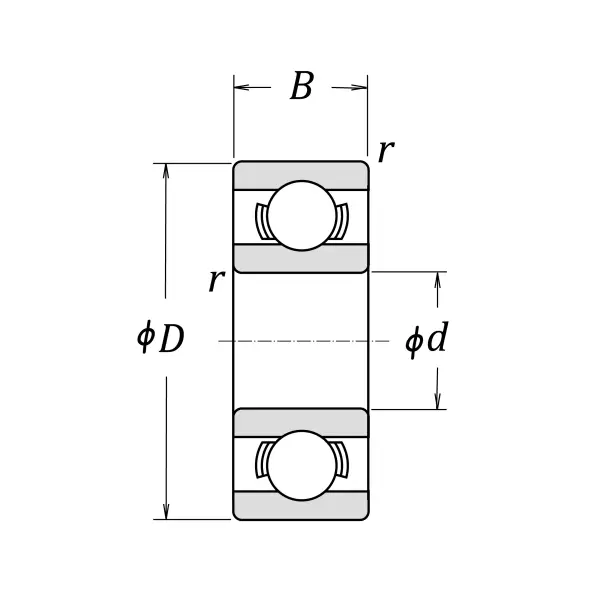

Dimensional Specifications
d
4.000 mm
D
13.000 mm
B
5.000 mm
r
0.200 mm
ras max
0.200 mm
