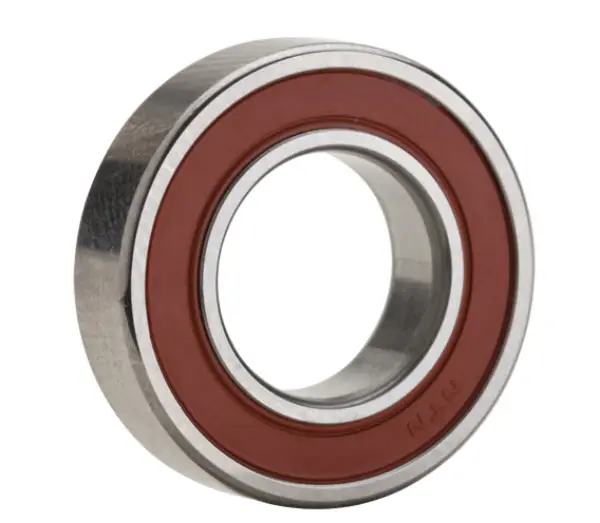

NTN 625LLU
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel

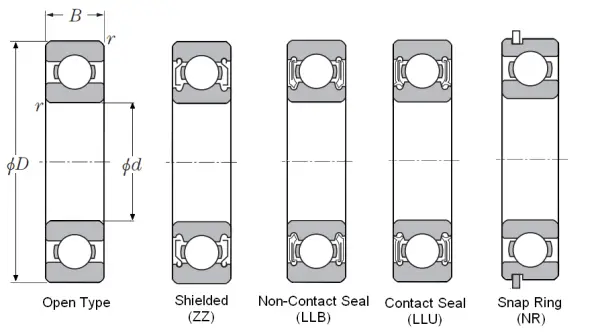

Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
12.4
Radial Internal Clearance
CN
Static Load Rating
680000 N
Dynamic Load Rating
1940 N
Enclosure
Double Sealed
Weight
0.005 kg
Operating Temperature Range
-40 to 120 ºC

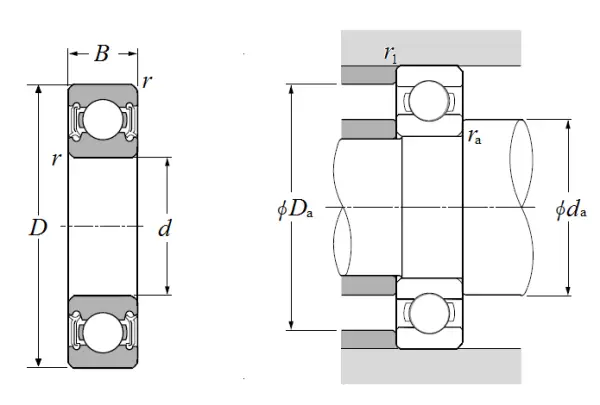

Dimensional Specifications
d
5.000 mm
D
16.000 mm
B
5.000 mm
r
0.300 mm
