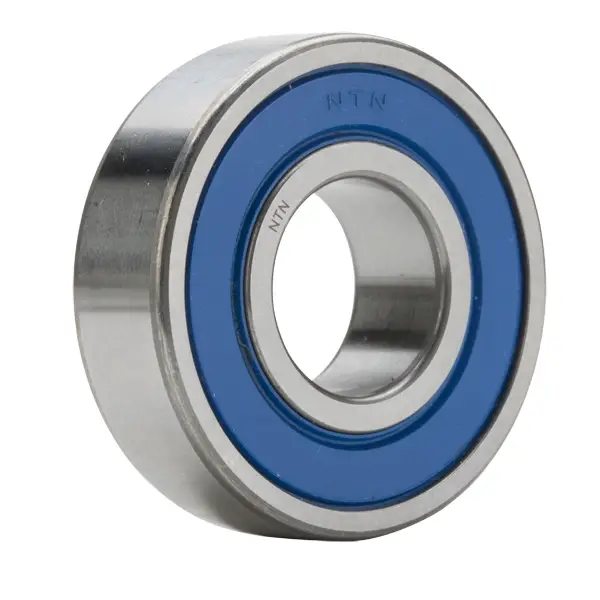

NTN 626LLH
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Light Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
12.1
Radial Internal Clearance
CN
Static Load Rating
890 N
Dynamic Load Rating
2590 N
Enclosure
Double Sealed
Weight
0.008 kg
Operating Temperature Range
-40 to 120 ºC

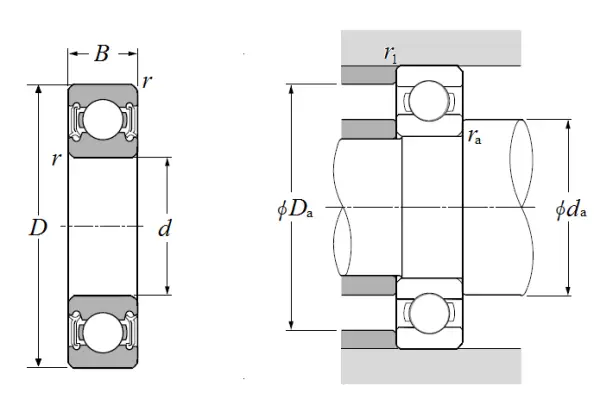

Dimensional Specifications
d
6.000 mm
D
19.000 mm
B
6.000 mm
r
0.300 mm
