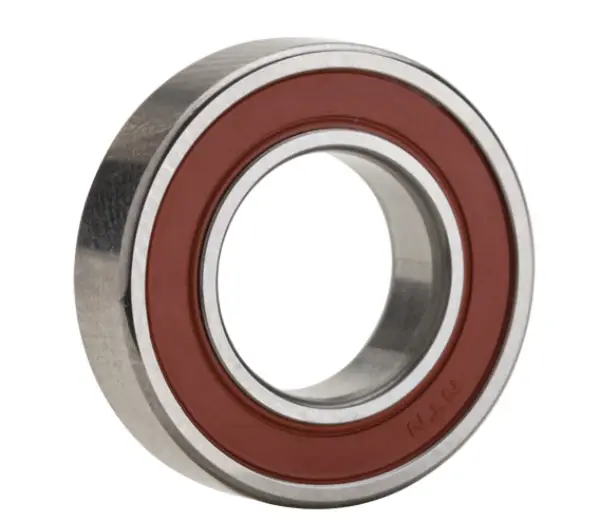

NTN 626LLUC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
30000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
12.4
Radial Internal Clearance
C3
Static Load Rating
890 N
Dynamic Load Rating
2590 N
Enclosure
Double Sealed
Weight
0.008 kg
Operating Temperature Range
-40 to 120 ºC

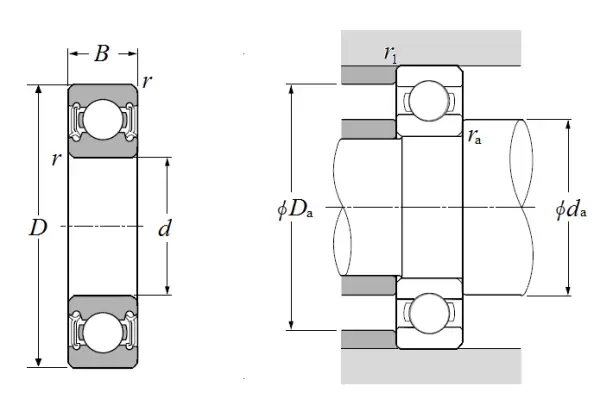

Dimensional Specifications
d
6.000 mm
D
19.000 mm
B
6.000 mm
r
0.300 mm
