NTN 629
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Micro Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
35000 RPM
Limiting Speed - Grease
30000 RPM
Style
Single Row
Seal Type
None
Seal Material
None
Precision
Standard
Configuration
One
Static Load Rating
1960 N
Dynamic Load Rating
5050 N
Enclosure
Open
Weight
0.019 kg
Operating Temperature Range
-40 to 120 ºC

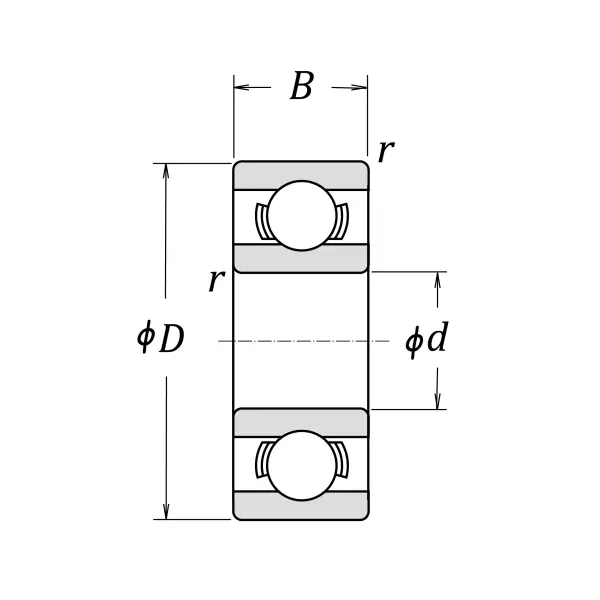

Dimensional Specifications
d
9.000 mm
D
26.000 mm
B
8.000 mm
r
0.600 mm

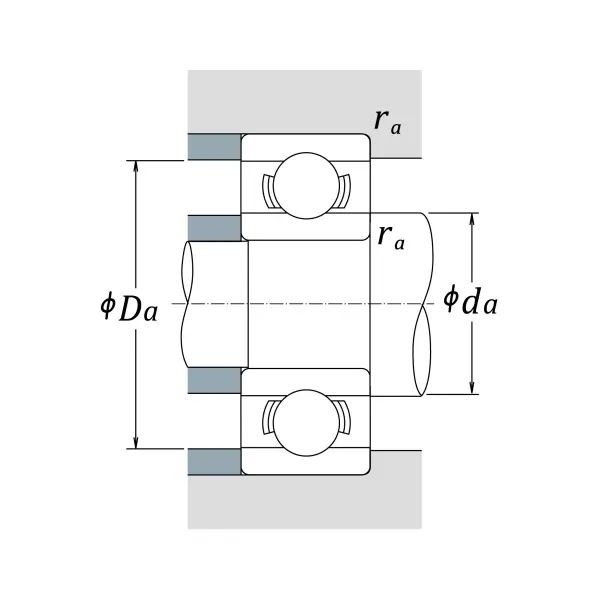

ras max
0.300 mm
