NTN 63/32ZNR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
11000 RPM
Limiting Speed - Grease
9500 RPM
Precision
ISO Class 0
Configuration
One
Factor
13.1
Radial Internal Clearance
CN
Static Load Rating
16900 N
Dynamic Load Rating
33000 N
Enclosure
Single Shielded
Weight
0.394 kg
Operating Temperature Range
-40 to 120 ºC

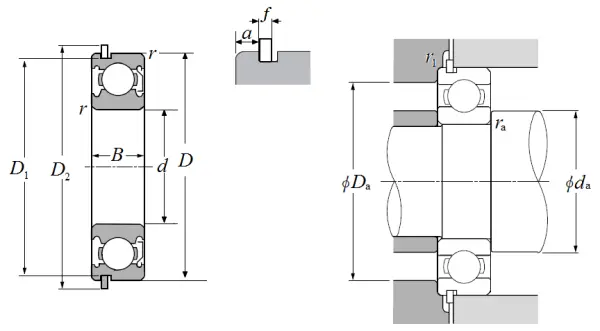

Dimensional Specifications
d
32.000 mm
D
75.000 mm
B
20.000 mm
D1
71.830 mm
D2
81.600 mm
a
3.280 mm
f
1.700 mm
r
1.100 mm
r1
0.500 mm
da min
38.500 mm
da max
43.500 mm
Da max
68.500 mm
ras max
1.000 mm
