NTN 6300ZNRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
27000 RPM
Limiting Speed - Grease
23000 RPM
Precision
ISO Class 0
Configuration
One
Factor
11.4
Radial Internal Clearance
C3
Static Load Rating
3500 N
Dynamic Load Rating
9100 N
Enclosure
Single Shielded
Operating Temperature Range
-40 to 120 ºC

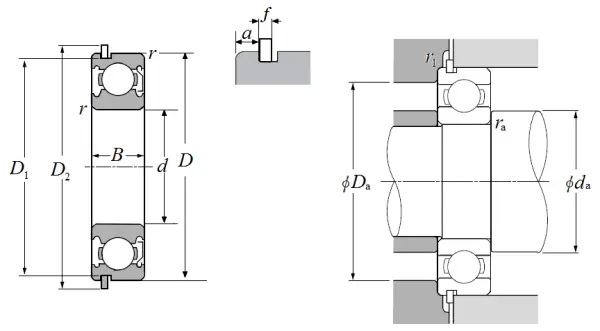

Dimensional Specifications
d
10.000 mm
D
35.000 mm
B
11.000 mm
D1
33.170 mm
D2
39.700 mm
a
2.060 mm
f
1.120 mm
r
0.600 mm
r1
0.500 mm
da min
14.000 mm
da max
17.000 mm
Da max
31.000 mm
ras max
0.600 mm
