NTN 6302LUNC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
12000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Factor
12.3
Radial Internal Clearance
C3
Static Load Rating
5450 N
Dynamic Load Rating
12700 N
Enclosure
Single Sealed
Weight
0.082 kg
Operating Temperature Range
-40 to 120 ºC

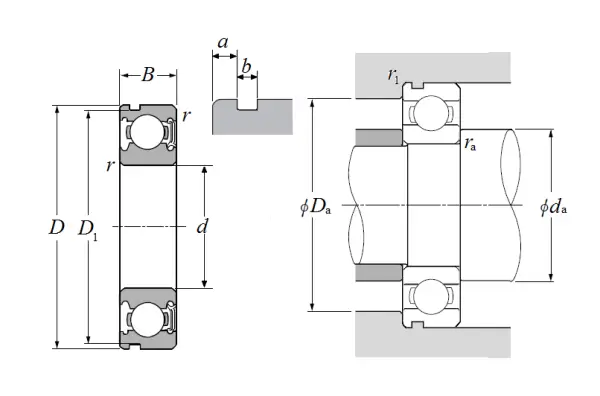

Dimensional Specifications
d
15.000 mm
D
42.000 mm
B
13.000 mm
D1
39.750 mm
a
2.060 mm
b
1.350 mm
r
1.000 mm
r1
0.500 mm
da min
20.000 mm
da max
23.000 mm
Da max
37.000 mm
ras max
1.000 mm
