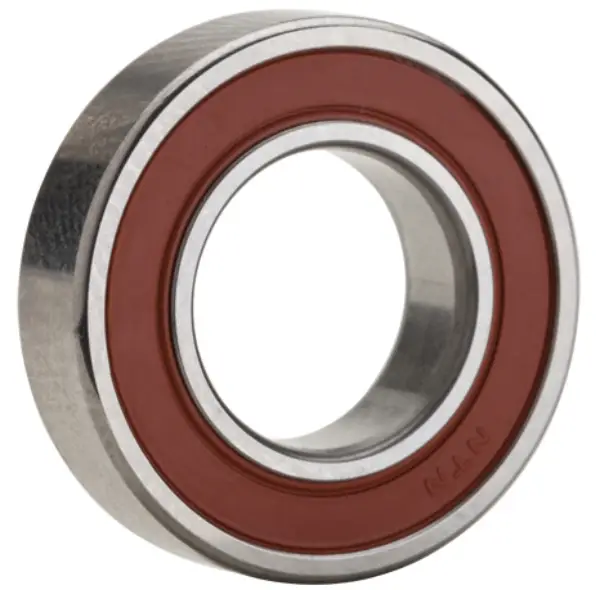

NTN 6303FT150
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
10000 RPM
Limiting Speed - Grease
10000 RPM
Seal Type
Contact
Seal Material
Viton
Precision
ISO Class 0
Configuration
One
Factor
12.2
Radial Internal Clearance
C3
Static Load Rating
6550 N
Dynamic Load Rating
15000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 150 ºC
Dimensional Specifications
d
17.000 mm
D
47.000 mm
B
14.000 mm
r
1.000 mm
r1
0.500 mm
da min
22.000 mm
da max
25.000 mm
Da max
42.000 mm
ras max
1.000 mm
