NTN 6304ZZC4
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
14000 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 0
Configuration
One
Factor
12.4
Radial Internal Clearance
C4
Static Load Rating
7900 N
Dynamic Load Rating
17600 N
Enclosure
Double Shielded
Weight
0.145 kg
Operating Temperature Range
-40 to 120 ºC

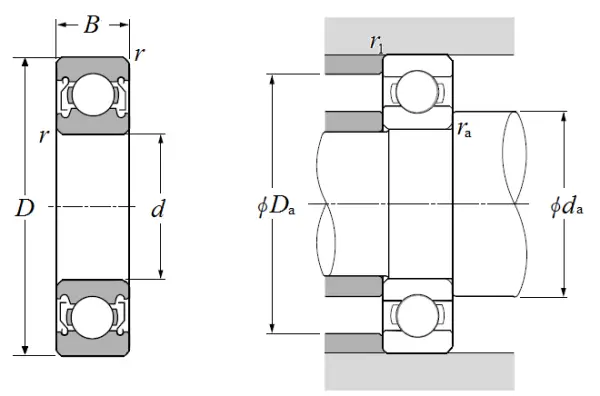

Dimensional Specifications
d
20.000 mm
D
52.000 mm
B
15.000 mm
r
1.100 mm
r1
0.500 mm
da min
26.500 mm
da max
28.500 mm
Da max
45.500 mm
ras max
1.000 mm
