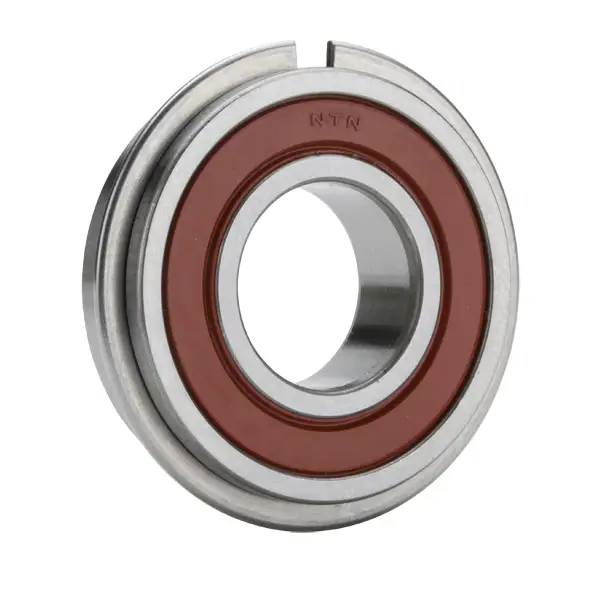

NTN 6305LLUNRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
8100 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
12.6
Radial Internal Clearance
C3
Static Load Rating
10900 N
Dynamic Load Rating
23500 N
Enclosure
Double Sealed
Weight
0.236 kg
Operating Temperature Range
-40 to 120 ºC

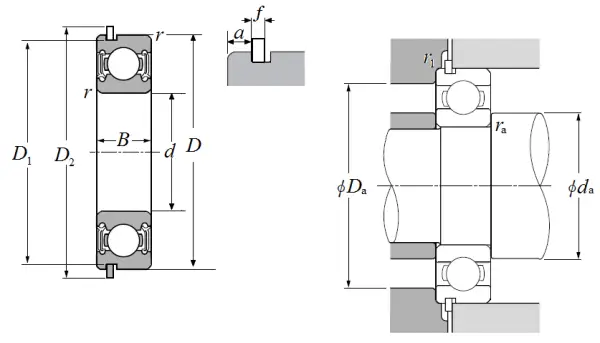

Dimensional Specifications
d
25.000 mm
D
62.000 mm
B
17.000 mm
D1
59.610 mm
D2
67.700 mm
a
3.280 mm
f
1.700 mm
r
1.100 mm
r1
0.500 mm
da min
31.500 mm
da max
35.000 mm
Da max
55.500 mm
ras max
1.000 mm
