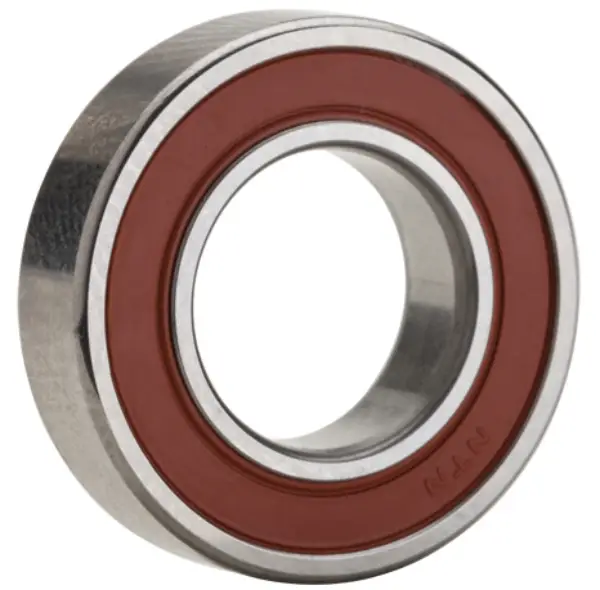

NTN 6308HT200ZZ
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
2300 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 0
Configuration
One
Factor
13.2
Radial Internal Clearance
C4
Static Load Rating
24000 N
Dynamic Load Rating
45000 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 200 ºC
Dimensional Specifications
d
40.000 mm
D
90.000 mm
B
23.000 mm
r
1.500 mm
r1
0.500 mm
da min
48.000 mm
da max
54.000 mm
Da max
82.000 mm
ras max
1.500 mm
