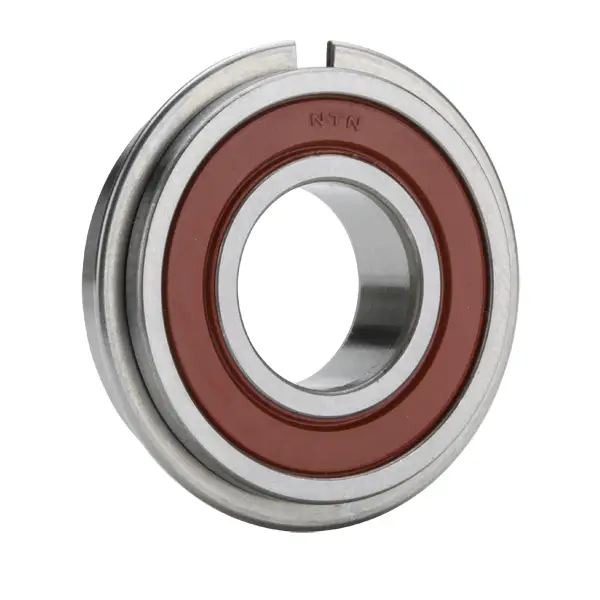

NTN 6309LUNR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
4700 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
13.1
Radial Internal Clearance
CN
Static Load Rating
32000 N
Dynamic Load Rating
58500 N
Enclosure
Single Sealed
Operating Temperature Range
-40 to 120 ºC

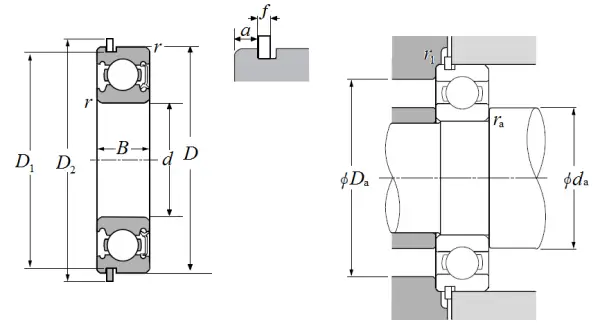

Dimensional Specifications
d
45.000 mm
D
100.000 mm
B
25.000 mm
D1
96.800 mm
D2
106.500 mm
a
3.280 mm
f
2.460 mm
r
1.500 mm
r1
0.500 mm
da min
53.000 mm
da max
61.500 mm
Da max
92.000 mm
ras max
1.500 mm
