NTN 6309T2ZZC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Nylon
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
7000 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 0
Configuration
One
Factor
13.1
Radial Internal Clearance
C3
Static Load Rating
32000 N
Dynamic Load Rating
58500 N
Enclosure
Double Shielded
Weight
0.824 kg
Operating Temperature Range
-40 to 120 ºC

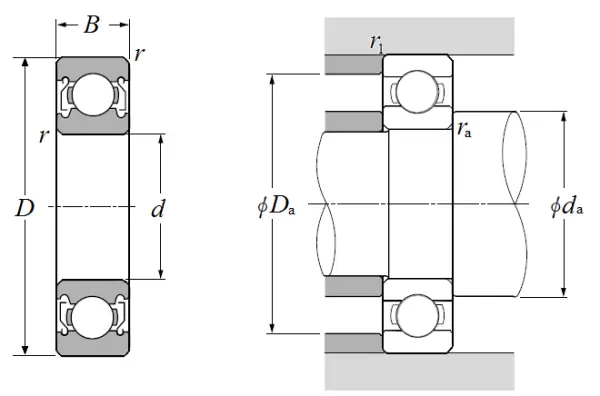

Dimensional Specifications
d
45.000 mm
D
100.000 mm
B
25.000 mm
r
1.500 mm
r1
0.500 mm
da min
53.000 mm
da max
61.500 mm
Da max
92.000 mm
ras max
1.500 mm
