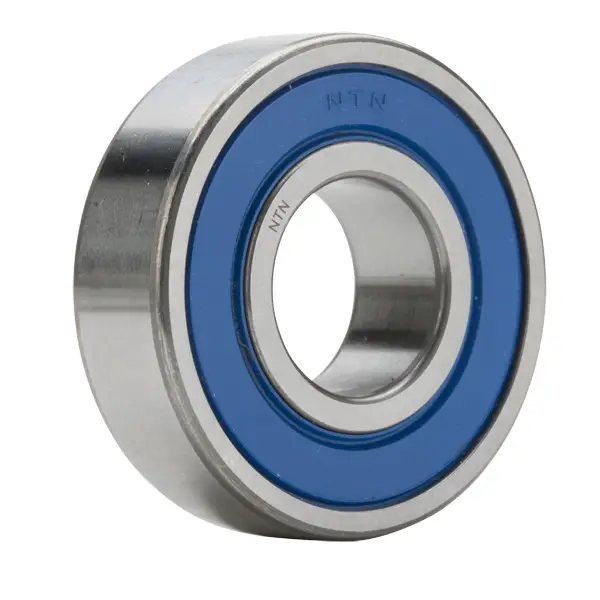

NTN 6310LLHAP6C3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Goove Ball Bearing
Bore Type
Round
Outside Ring Type
0
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Pressed Steel
Ball Material
Through Hardened Steel
Limiting Speed - Grease
5000 RPM
Seal Type
Contact
Seal Material
Polyacrylic
Precision
ISO Class 6
Configuration
One
Factor
13.2
Radial Internal Clearance
C3
Static Load Rating
38500 N
Dynamic Load Rating
68500 N
Enclosure
Light Contact Seal - Both Sides
Weight
1.070 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
50.000 mm
D
110.000 mm
B
27.000 mm
r
2.000 mm
r1
2.000 mm
da min
59.000 mm
da max
68.500 mm
Da max
101.000 mm
ras max
2.000 mm
Specifications
Axial Static Load Rating
38500 N
Radial Dynamic Load Rating
68500 N
