NTN 6310LUNRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
4200 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
13.2
Radial Internal Clearance
C3
Static Load Rating
38500 N
Dynamic Load Rating
68500 N
Enclosure
Single Sealed
Weight
1.080 kg
Operating Temperature Range
-40 to 120 ºC

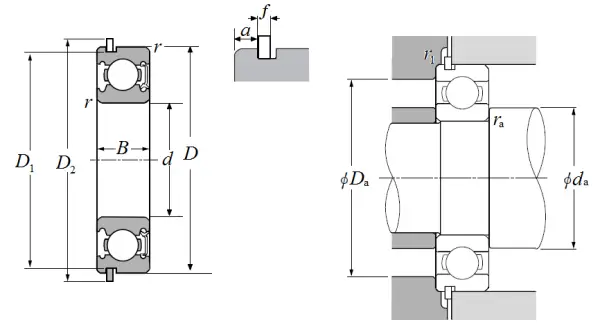

Dimensional Specifications
d
50.000 mm
D
110.000 mm
B
27.000 mm
D1
106.810 mm
D2
116.600 mm
a
3.280 mm
f
2.460 mm
r
2.000 mm
r1
0.500 mm
da min
59.000 mm
da max
68.500 mm
Da max
101.000 mm
ras max
2.000 mm
