NTN 6312ZZNRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
5400 RPM
Precision
ISO Class 0
Configuration
One
Factor
13.2
Radial Internal Clearance
C3
Static Load Rating
52000 N
Dynamic Load Rating
90500 N
Enclosure
Double Shielded
Weight
1.717 kg
Operating Temperature Range
-40 to 120 ºC

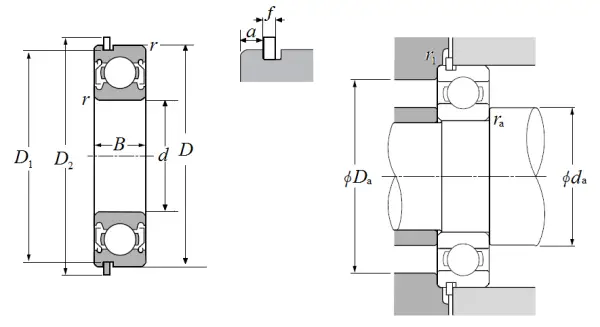

Dimensional Specifications
d
60.000 mm
D
130.000 mm
B
31.000 mm
D1
125.220 mm
D2
139.700 mm
a
4.060 mm
f
2.820 mm
r
2.000 mm
r1
0.500 mm
da min
71.000 mm
da max
80.500 mm
Da max
119.000 mm
ras max
2.000 mm
