NTN 6313LLBNR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
4900 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
13.2
Radial Internal Clearance
CN
Static Load Rating
60000 N
Dynamic Load Rating
103000 N
Enclosure
Double Sealed
Weight
2.130 kg
Operating Temperature Range
-40 to 120 ºC

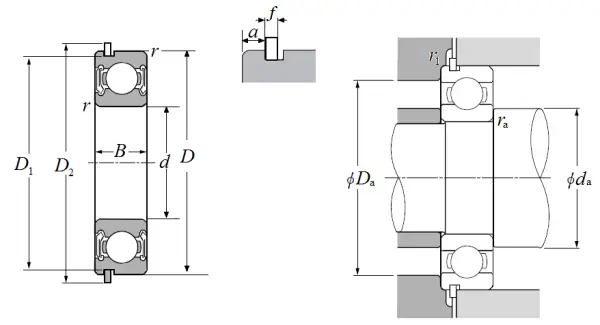

Dimensional Specifications
d
65.000 mm
D
140.000 mm
B
33.000 mm
D1
135.230 mm
D2
149.700 mm
a
4.900 mm
f
2.820 mm
r
2.100 mm
r1
0.500 mm
da min
76.000 mm
da max
86.000 mm
Da max
129.000 mm
ras max
2.000 mm
