NTN 6315LLUNC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
2900 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
Class 0
Configuration
One
Factor
13.2
Radial Internal Clearance
C3
Static Load Rating
77000 N
Dynamic Load Rating
126000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

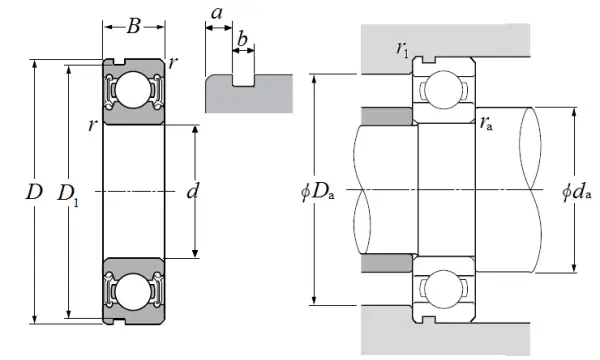

Dimensional Specifications
d
75.000 mm
D
160.000 mm
B
37.000 mm
D1
155.220 mm
a
4.900 mm
b
3.100 mm
r
2.100 mm
r1
0.500 mm
da min
86.000 mm
da max
99.000 mm
Da max
149.000 mm
ras max
2.000 mm
