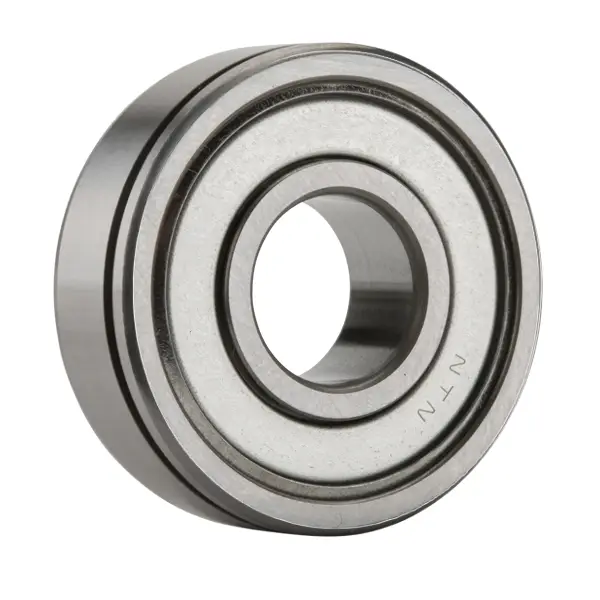

NTN 6316ZZNC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
4000 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
13.3
Radial Internal Clearance
C3
Static Load Rating
86500 N
Dynamic Load Rating
136000 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 120 ºC

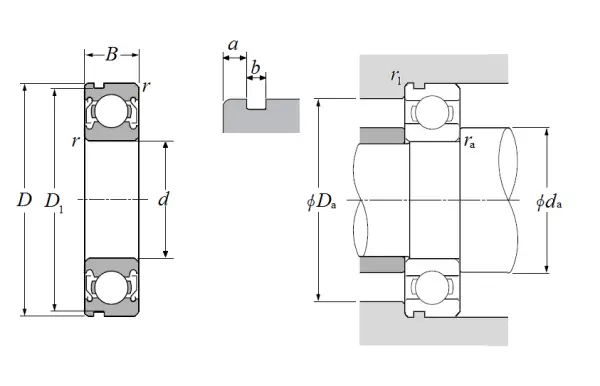

Dimensional Specifications
d
80.000 mm
D
170.000 mm
B
39.000 mm
D1
163.650 mm
a
4.900 mm
b
3.500 mm
r
2.100 mm
r1
0.500 mm
da min
91.000 mm
da max
105.000 mm
Da max
159.000 mm
ras max
2.000 mm
