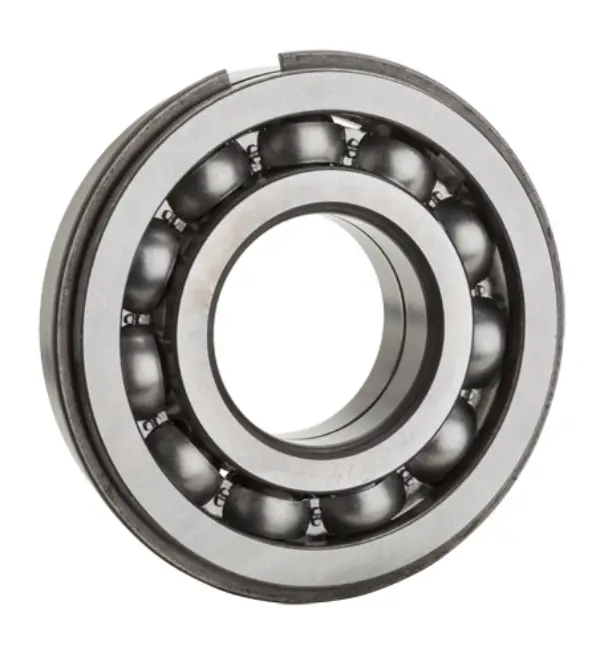

NTN 6319NRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
3900 RPM
Limiting Speed - Grease
3300 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Factor
13.3
Radial Internal Clearance
C3
Static Load Rating
119000 N
Dynamic Load Rating
169000 N
Enclosure
Open
Weight
5.770 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
95.000 mm
D
200.000 mm
B
45.000 mm
D1
193.650 mm
D2
212.900 mm
a
5.690 mm
f
3.100 mm
r
3.000 mm
r1
0.500 mm
da min
108.000 mm
da max
125.000 mm
Da max
187.000 mm
ras max
2.500 mm
