NTN 63209ZZC3/EM
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Outside Ring Type
0
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Pressed Steel
Ball Material
Through Hardened Steel
Limiting Speed - Grease
7800 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 0
Configuration
One
Factor
13.2
Radial Internal Clearance
C3
Static Load Rating
20400 N
Dynamic Load Rating
36000 N
Enclosure
Metal Shield - Both Sides
Weight
0.398 kg
Operating Temperature Range
-40 to 120 ºC

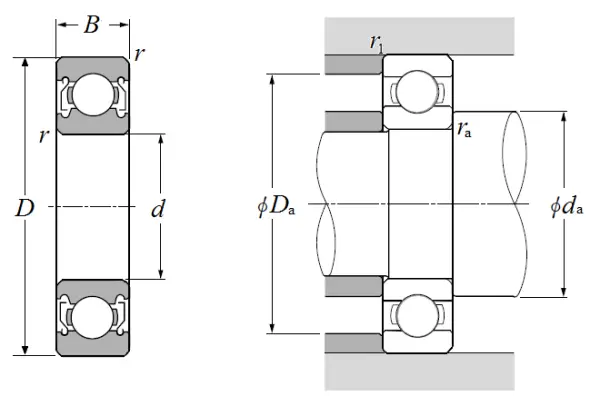

Dimensional Specifications
d
45.000 mm
D
85.000 mm
B
30.200 mm
r
1.100 mm
Specifications
Axial Static Load Rating
20400 N
Radial Dynamic Load Rating
36000 N
