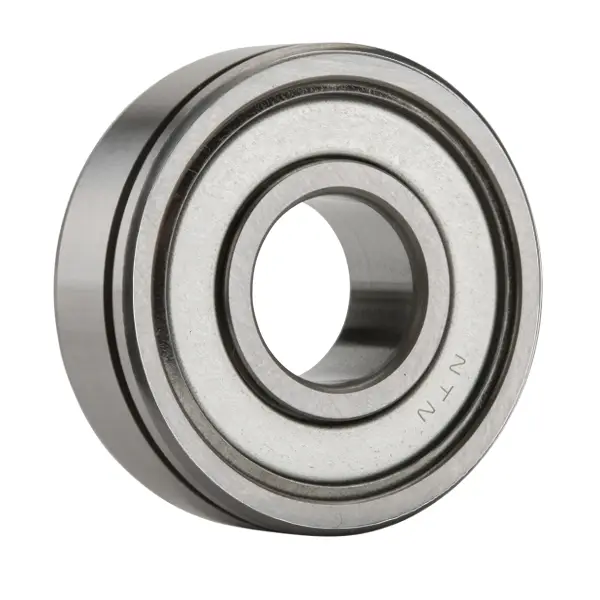

NTN 6320ZZNC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
3200 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
13.2
Radial Internal Clearance
C3
Static Load Rating
141000 N
Dynamic Load Rating
192000 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
100.000 mm
D
215.000 mm
B
47.000 mm
D1
208.600 mm
a
5.690 mm
b
3.500 mm
r
3.000 mm
da min
113.000 mm
da max
133.000 mm
Da max
202.000 mm
ras max
2.500 mm
