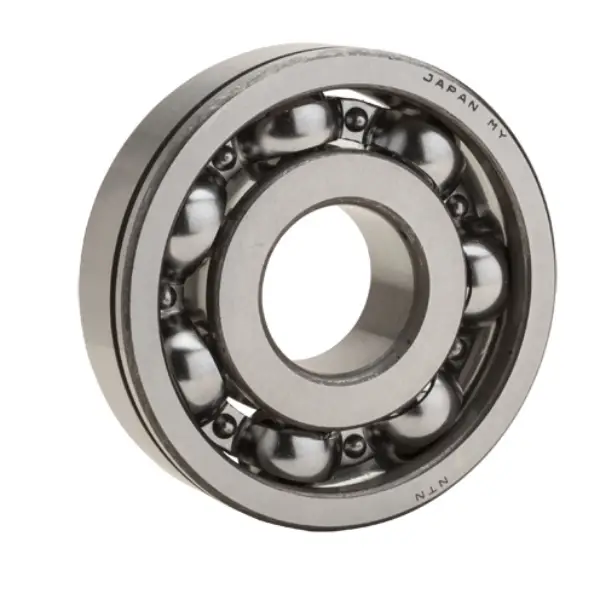

NTN 6322NC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
3400 RPM
Limiting Speed - Grease
2900 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
13.1
Radial Internal Clearance
C3
Static Load Rating
179000 N
Dynamic Load Rating
227000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

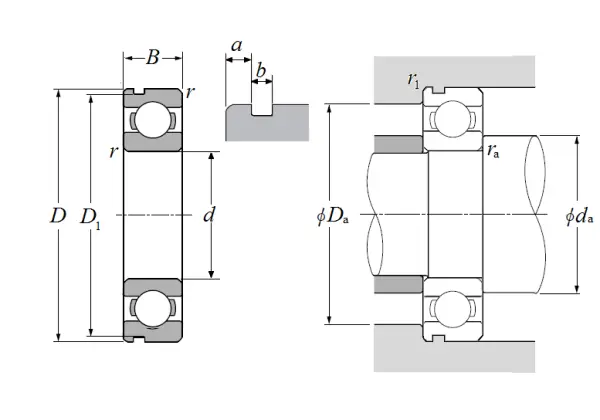

Dimensional Specifications
d
110.000 mm
D
240.000 mm
B
50.000 mm
D1
232.000 mm
a
6.500 mm
b
4.500 mm
r
3.000 mm
da min
123.000 mm
da max
149.000 mm
Da max
227.000 mm
ras max
2.500 mm
