NTN 6324ZZ
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
2600 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 0
Configuration
One
Factor
13.5
Radial Internal Clearance
CN
Static Load Rating
185000 N
Dynamic Load Rating
229000 N
Enclosure
Double Shielded
Weight
12.700 kg
Operating Temperature Range
-40 to 120 ºC

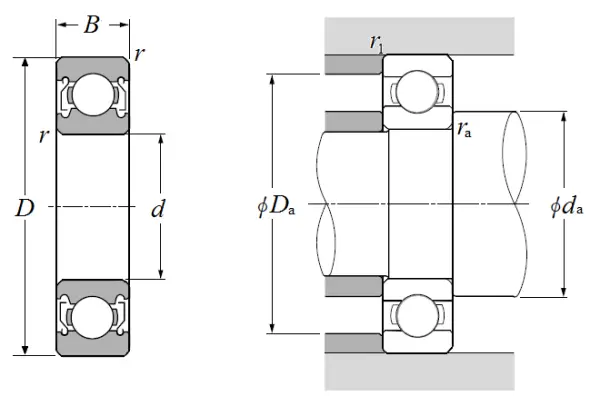

Dimensional Specifications
d
120.000 mm
D
260.000 mm
B
55.000 mm
r
3.000 mm
da min
133 mm
Da max
247 mm
ras max
2.500 mm
