NTN 63309ZZC3/EM
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Outside Ring Type
0
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Pressed Steel
Ball Material
Through Hardened Steel
Limiting Speed - Grease
7000 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 0
Configuration
One
Factor
13.1
Radial Internal Clearance
C3
Static Load Rating
32000 N
Dynamic Load Rating
58500 N
Enclosure
Metal Shield - Both Sides
Weight
0.814 kg
Operating Temperature Range
-40 to 120 ºC

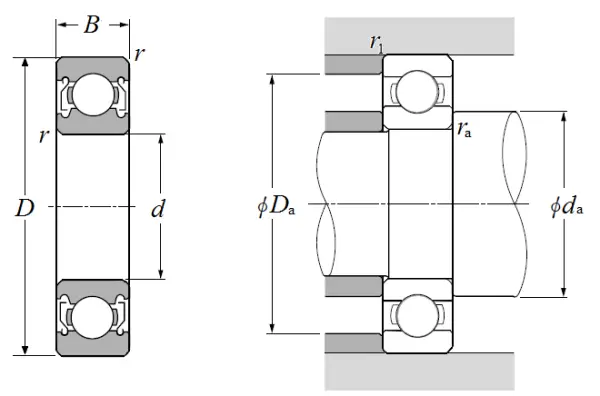

Dimensional Specifications
d
45.000 mm
D
100.000 mm
B
39.700 mm
r
2.500 mm
Specifications
Axial Static Load Rating
32000 N
Radial Dynamic Load Rating
58500 N
