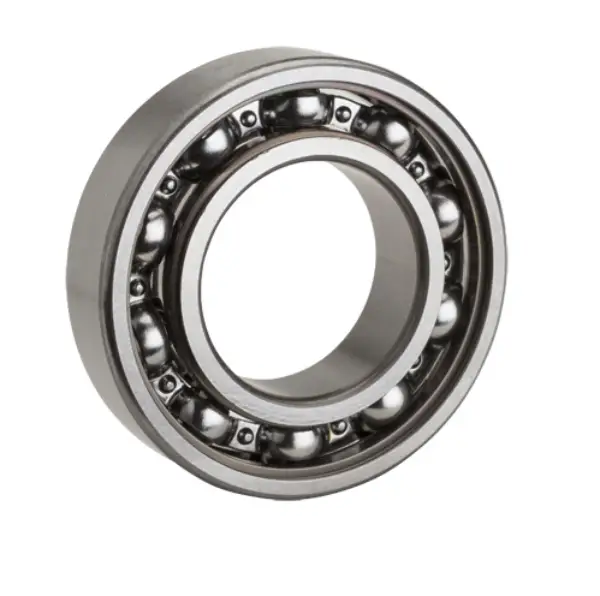

NTN 6406
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
10000 RPM
Limiting Speed - Grease
8800 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
12.3
Radial Internal Clearance
CN
Static Load Rating
23900 N
Dynamic Load Rating
48000 N
Enclosure
Open
Weight
0.735 kg
Operating Temperature Range
-40 to 120 ºC

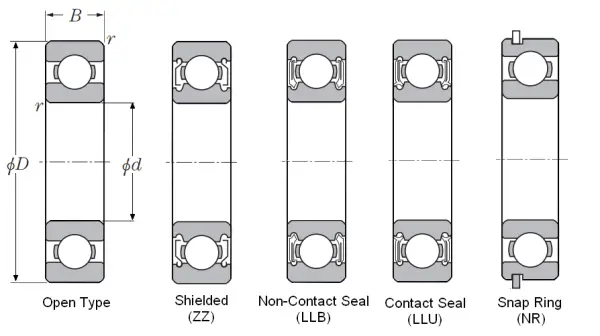

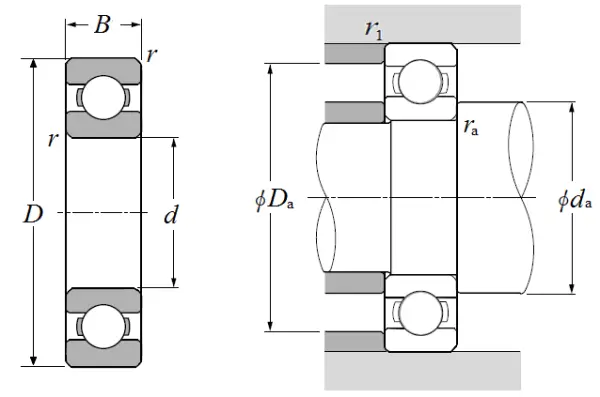

Dimensional Specifications
d
30.000 mm
D
90.000 mm
B
23.000 mm
r
1.500 mm
da min
38.000 mm
Da max
82.000 mm
ras max
1.500 mm
