NTN 6704ZZ
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stainless (Crown Type)
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
5000 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 0
Configuration
One
Factor
16.1
Radial Internal Clearance
CN
Static Load Rating
730 N
Dynamic Load Rating
1150 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 120 ºC

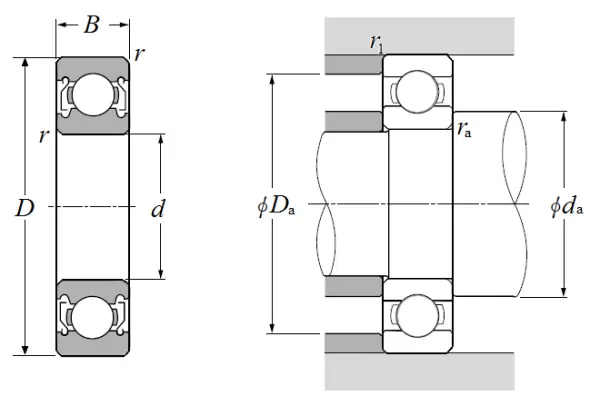

Dimensional Specifications
d
20.000 mm
D
27.000 mm
B
4.000 mm
r
0.200 mm
da min
21.600 mm
da max
22.300 mm
Da max
25.400 mm
ras max
0.200 mm
