NTN 6801LBC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
35000 RPM
Limiting Speed - Grease
29000 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
19.0
Radial Internal Clearance
C3
Static Load Rating
1040 N
Dynamic Load Rating
2120 N
Enclosure
Single Sealed
Operating Temperature Range
-40 to 120 ºC

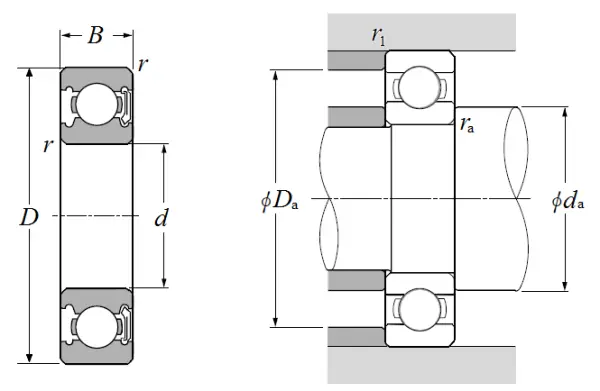

Dimensional Specifications
d
12.000 mm
D
21.000 mm
B
5.000 mm
r
0.300 mm
da min
14.000 mm
da max
14.500 mm
Da max
19.000 mm
ras max
0.300 mm
