NTN 6803ZZ
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
24000 RPM
Seal Type
None
Seal Material
None
Precision
ISO Class 0
Configuration
One
Factor
16.1
Radial Internal Clearance
CN
Static Load Rating
1460 N
Dynamic Load Rating
2470 N
Enclosure
Double Shielded
Weight
0.008 kg
Operating Temperature Range
-40 to 120 ºC

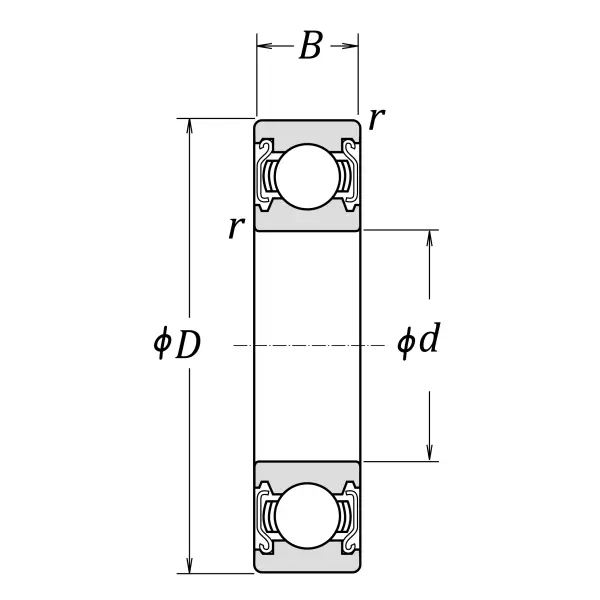

Dimensional Specifications
d
17.000 mm
D
26.000 mm
B
5.000 mm
r
0.300 mm

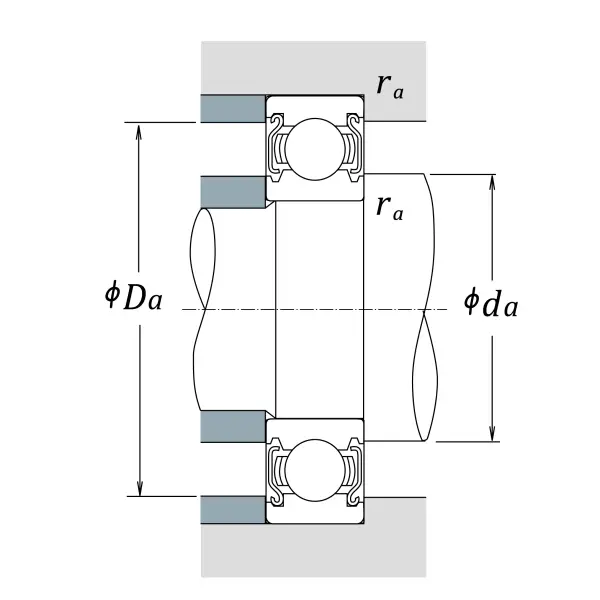

da min
19.000 mm
da max
19.500 mm
Da max
24 mm
ras max
0.300 mm
