NTN 6804LUC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
13000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
30.0
Radial Internal Clearance
C3
Static Load Rating
2470 N
Dynamic Load Rating
4450 N
Enclosure
Single Sealed
Operating Temperature Range
-40 to 120 ºC

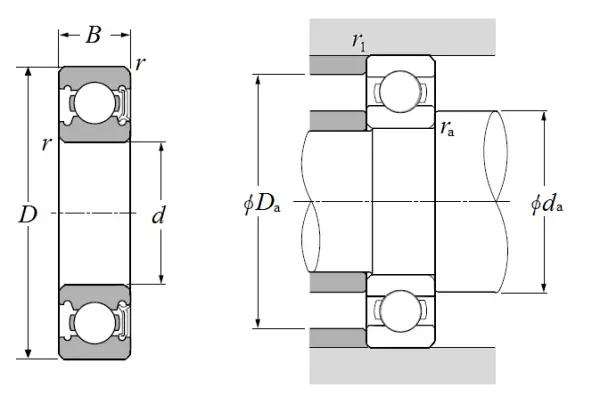

Dimensional Specifications
d
20.000 mm
D
32.000 mm
B
7.000 mm
r
0.300 mm
r1
0.300 mm
da min
22.000 mm
da max
22.500 mm
Da max
30.000 mm
ras max
0.300 mm
