NTN 6805ZNR
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
21000 RPM
Limiting Speed - Grease
18000 RPM
Precision
ISO Class 0
Configuration
One
Factor
16.1
Radial Internal Clearance
CN
Static Load Rating
2950 N
Dynamic Load Rating
4750 N
Enclosure
Single Shielded
Operating Temperature Range
-40 to 120 ºC

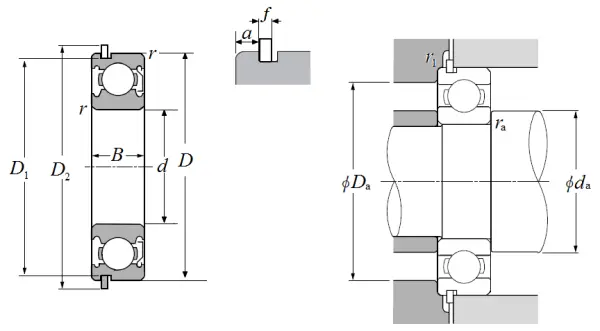

Dimensional Specifications
d
25.000 mm
D
37.000 mm
B
7.000 mm
D1
35.700 mm
D2
39.800 mm
a
1.300 mm
f
0.850 mm
r
0.300 mm
r1
0.300 mm
da min
27.000 mm
da max
28.000 mm
Da max
35.000 mm
ras max
0.300 mm
