NTN 6806N
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
18000 RPM
Limiting Speed - Grease
15000 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
16.5
Radial Internal Clearance
CN
Static Load Rating
3650 N
Dynamic Load Rating
5200 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

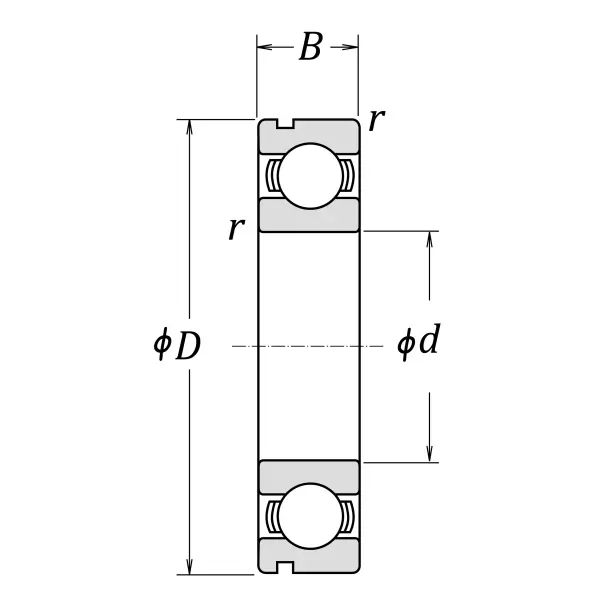

Dimensional Specifications
d
30.000 mm
D
42.000 mm
B
7.000 mm
D1
40.700 mm
a
1.300 mm
b
0.950 mm
r
0.300 mm
r1
0.300 mm
da min
32.000 mm
da max
33.000 mm
Da max
40.000 mm
ras max
0.300 mm
