NTN 6807LB
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
16000 RPM
Limiting Speed - Grease
13000 RPM
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 0
Configuration
One
Factor
45.0
Radial Internal Clearance
CN
Static Load Rating
4050 N
Dynamic Load Rating
5450 N
Enclosure
Single Sealed
Operating Temperature Range
-40 to 120 ºC

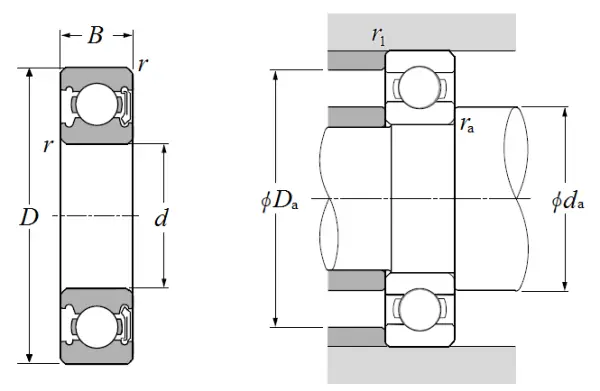

Dimensional Specifications
d
35.000 mm
D
47.000 mm
B
7.000 mm
r
0.300 mm
r1
0.300 mm
da min
37.000 mm
da max
38.000 mm
Da max
45.000 mm
ras max
0.300 mm
