NTN 6808ZN
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
14000 RPM
Limiting Speed - Grease
12000 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
16.3
Radial Internal Clearance
CN
Static Load Rating
4400 N
Dynamic Load Rating
5650 N
Enclosure
Single Shielded
Weight
0.030 kg
Operating Temperature Range
-40 to 120 ºC

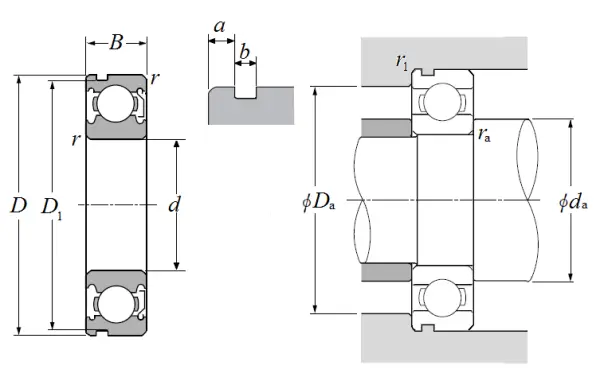

Dimensional Specifications
d
40.000 mm
D
52.000 mm
B
7.000 mm
D1
50.700 mm
a
1.300 mm
b
0.950 mm
r
0.300 mm
r1
0.300 mm
da min
42.000 mm
da max
43.000 mm
Da max
50.000 mm
ras max
0.300 mm
