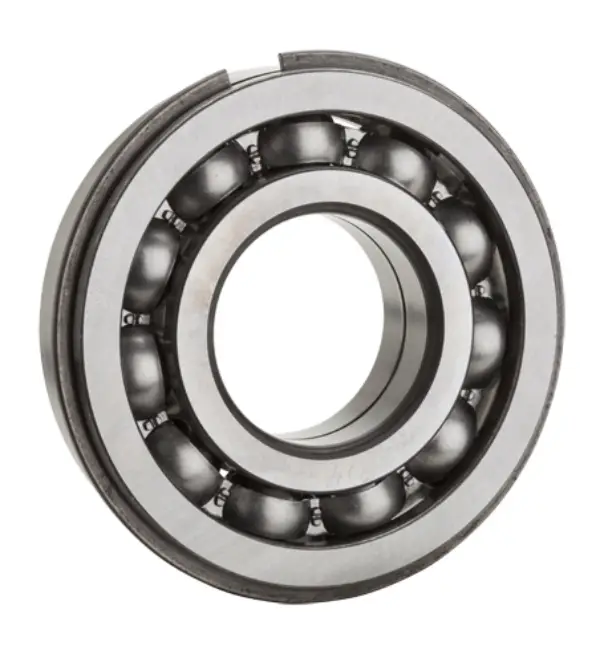

NTN 6810NRC3
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
11000 RPM
Limiting Speed - Grease
9600 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Factor
16.1
Radial Internal Clearance
C3
Static Load Rating
6100 N
Dynamic Load Rating
7300 N
Enclosure
Open
Weight
0.052 kg
Operating Temperature Range
-40 to 120 ºC

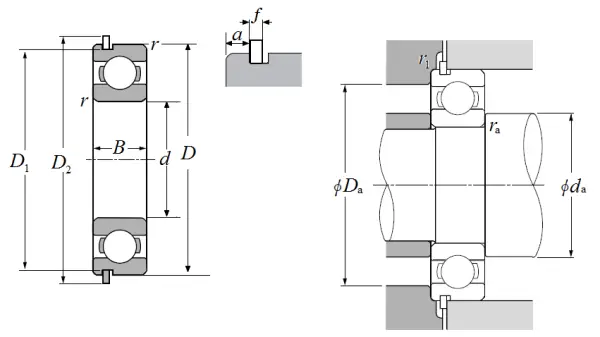

Dimensional Specifications
d
50.000 mm
D
65.000 mm
B
7.000 mm
D1
63.700 mm
D2
67.800 mm
a
1.300 mm
f
0.850 mm
r
0.300 mm
r1
0.300 mm
da min
52.000 mm
da max
54.000 mm
Da max
63.000 mm
ras max
0.300 mm
