NTN 6810ZN
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
11000 RPM
Limiting Speed - Grease
9600 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
16.1
Radial Internal Clearance
CN
Static Load Rating
6100 N
Dynamic Load Rating
7300 N
Enclosure
Single Shielded
Weight
0.052 kg
Operating Temperature Range
-40 to 120 ºC

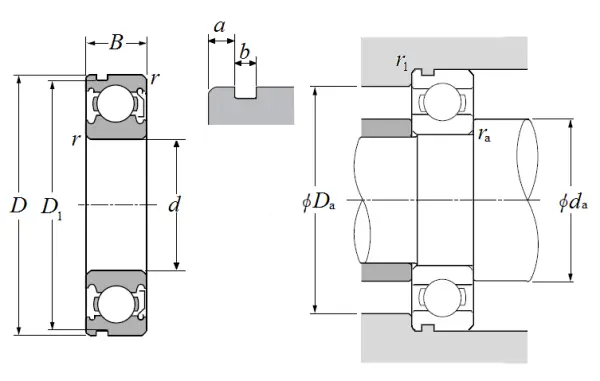

Dimensional Specifications
d
50.000 mm
D
65.000 mm
B
7.000 mm
D1
63.700 mm
a
1.300 mm
b
0.950 mm
r
0.300 mm
da min
52.000 mm
da max
54.000 mm
Da max
63.000 mm
ras max
0.300 mm
